Anchor Windlasses Hardy Engineering Ltd. Manufacturers of Marine Equipment UK

We manufacture hydraulic and electric windlass with pulling capacities from 900kg up to 5,000kgs.

You can choose from our range of styles and sizes below or we can design and manufacture a customised windlass to your specification.





Photo Model Max Pull Kgs Chain size mm Pressure (Bar) Flow (lpm) Price () Drawing Details
M1 M1 900 8 - 12 140 15 4005.75 Anchor Windlasses Data Sheet Details
M2 DG or GD M2 DG or GD 2,000 8 - 16 160 25 5381.25 Anchor Windlasses Data Sheet Details
M2 DGGD M2 DGGD 2,000 8 - 16 160 25 6682.20 Anchor Windlasses Data Sheet

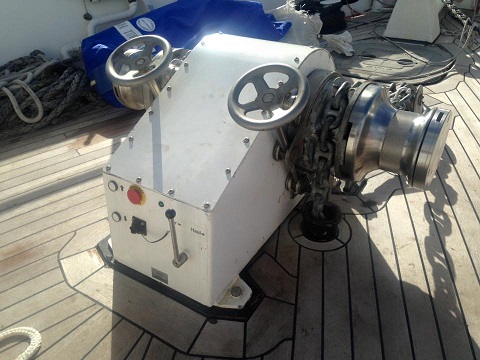

M3 M3 3,000 14 - 20 160 40 9594.90 Anchor Windlasses Data Sheet Details
M5 M5 5,000 16 - 26 160 50 11676.00 Anchor Windlasses Data Sheet
V3 V3 3,000 12 - 16 160 40 Anchor Windlasses Data Sheet
V3.5 V3.5 3,500 12 - 18 160 50 Anchor Windlasses Data Sheet
V5 V5 5,000 16 - 30 160 55 Anchor Windlasses Data Sheet
